Device management

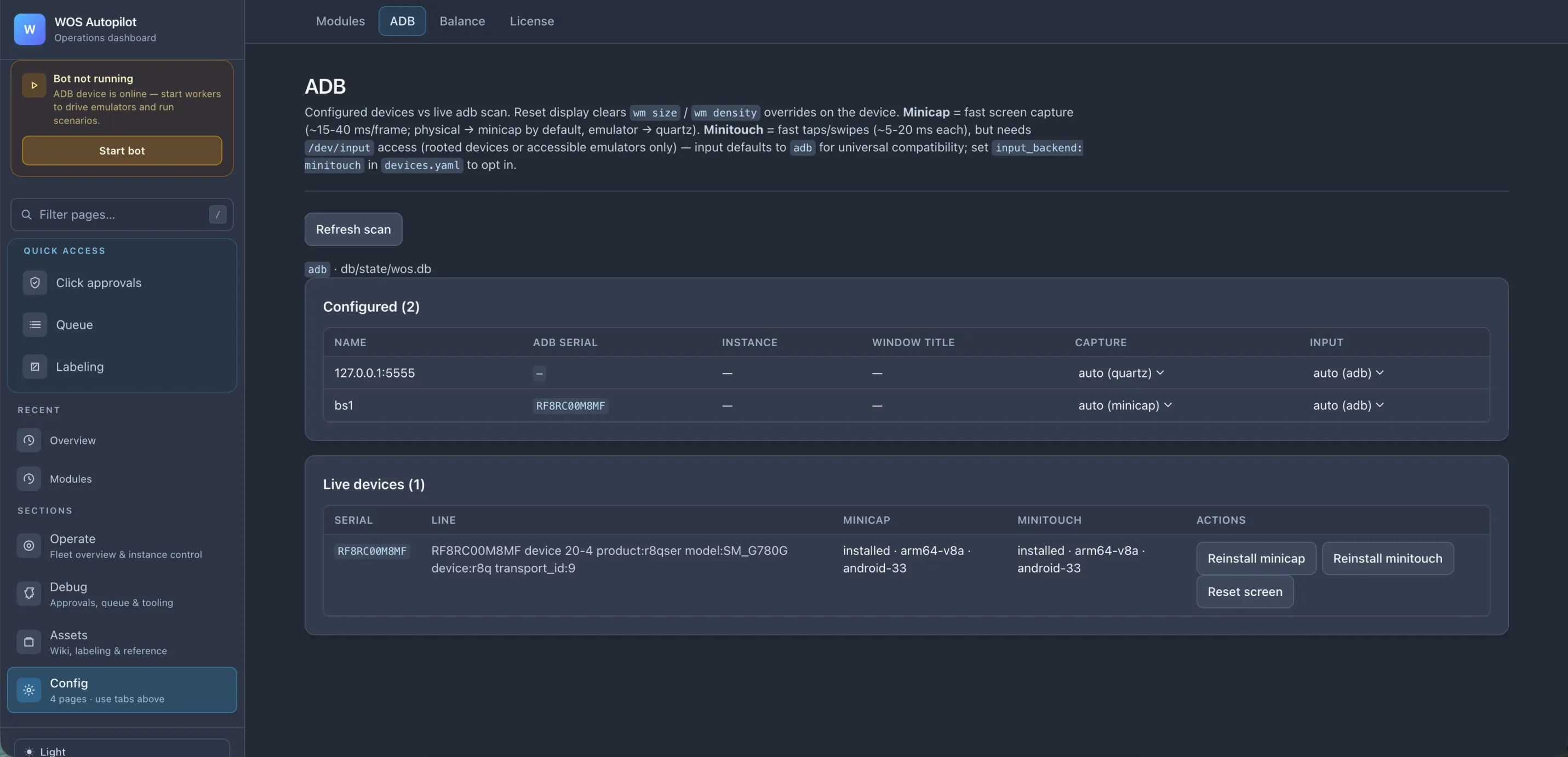

The ADB page in the operator dashboard reconciles your configured fleet (stored in db/state/wos.db) with whatever adb devices is currently reporting on the host. It picks the fastest viable capture/input backend per device automatically and gives you one-click controls to fix the rare cases when it can’t.

What you get

• Configured vs live — two side-by-side tables: what you’ve declared in the SQLite devices table (configured) and what adb devices is reporting right now (live). Mismatches are obvious at a glance.
• Manual device add. If the scan misses a BlueStacks instance or another emulator, use Add device and enter the instance name plus ADB serial directly. Existing rows can be replaced or removed from the same page.
• TCP port scan with a smaller default step. The scan probes the BlueStacks-style port range in steps of 5 by default, which catches more local instances than the older coarse scan.
• Auto-picked capture backend per device. Every device defaults to scrcpy (live H.264 stream); it falls back to a direct adb screencap if the stream is unavailable. Override per device by setting capture_backend: scrcpy | adb | auto in the devices table.
• Auto-picked input backend per device. adb input is the universal-compatibility default (~50–80 ms/tap). mintouch is the fast path (~5–20 ms/tap) but needs /dev/uinput access (rooted devices or accessible emulators). Opt in with input_backend: mintouch in the devices table.
• Live binary status. For each connected device, the page shows whether scrcpy-server and mintouch are installed, with the actual architecture (e.g. arm64-v8a · android-33).
• One-click recovery. Per-device action buttons:
  • Reinstall scrcpy — push scrcpy-server.jar onto the device.
  • Reinstall mintouch — same for the input binary.
  • Reset screen — clear any wm size / wm density overrides the bot might have applied during a failed run (a common cause of “everything’s drifted by 8 pixels” mysteries).
• Refresh scan — re-runs adb devices and the binary probes without restarting anything.

When scan is not enough

Some emulators expose ADB on a valid TCP port but do not appear in the scanned range, or keep an old offline serial around after reconnecting. In that case, add the instance explicitly:

1. Open Devices (ADB).
2. Click Add device.
3. Enter a stable instance name such as bs1 and the serial shown by adb devices, for example 127.0.0.1:5615.
4. Keep the default backends unless you are intentionally testing scrcpy or mintouch.

The worker resumes automatically once the configured serial is online.

Account identity by avatar

The bot can identify the active account from the chief avatar shown in the top-left of the main city. This is a fast fallback before the full chief-profile OCR probe: if active_player is empty, the rolling frame matcher treats the visible avatar as the account identity and compares that crop with the saved reference for each configured player on that device.

Recommended setup: give every account on the same emulator/device a different in-game avatar before relying on avatar identity. The matcher does not try to infer the player from profile text in this fast path; the avatar is the signal.

If two accounts share the same avatar, the matcher intentionally treats the result as ambiguous and the normal chief-profile identity flow takes over.

To refresh a player’s avatar reference:

1. Open the game on that account and leave it on the main city screen.
2. Start the worker so the dashboard has a fresh live frame.
3. Open Player state, choose the instance and player, then click Update avatar reference.

Avatar references are stored locally under db/state/player_avatars/ with the rest of the runtime state. They are not part of the release image.

Backend trade-offs

Backend	Latency	Requires
adb input	~50–80 ms/tap	nothing — works everywhere
mintouch input	~5–20 ms/tap	/dev/uinput (rooted device or --allow-root emulator)
adb capture	~250 ms/frame	nothing — works everywhere
scrcpy capture	live H.264 stream	scrcpy-server jar installed on device (page handles install)

The defaults are chosen for safety (works-everywhere). Opt into the fast path when your emulator/device supports it and you need the extra throughput — e.g. when running many instances on one host.
